Modern Retreat
Prince Edward County, ON
2024
- Architect
- SMPL Design Studio
- Location
- Prince Edward County, ON
- Year
- 2024
- Programme
- Two-storey country residence
- Footprint
- 2,707 sq ft
The Build
New build in ICF, wood and steel

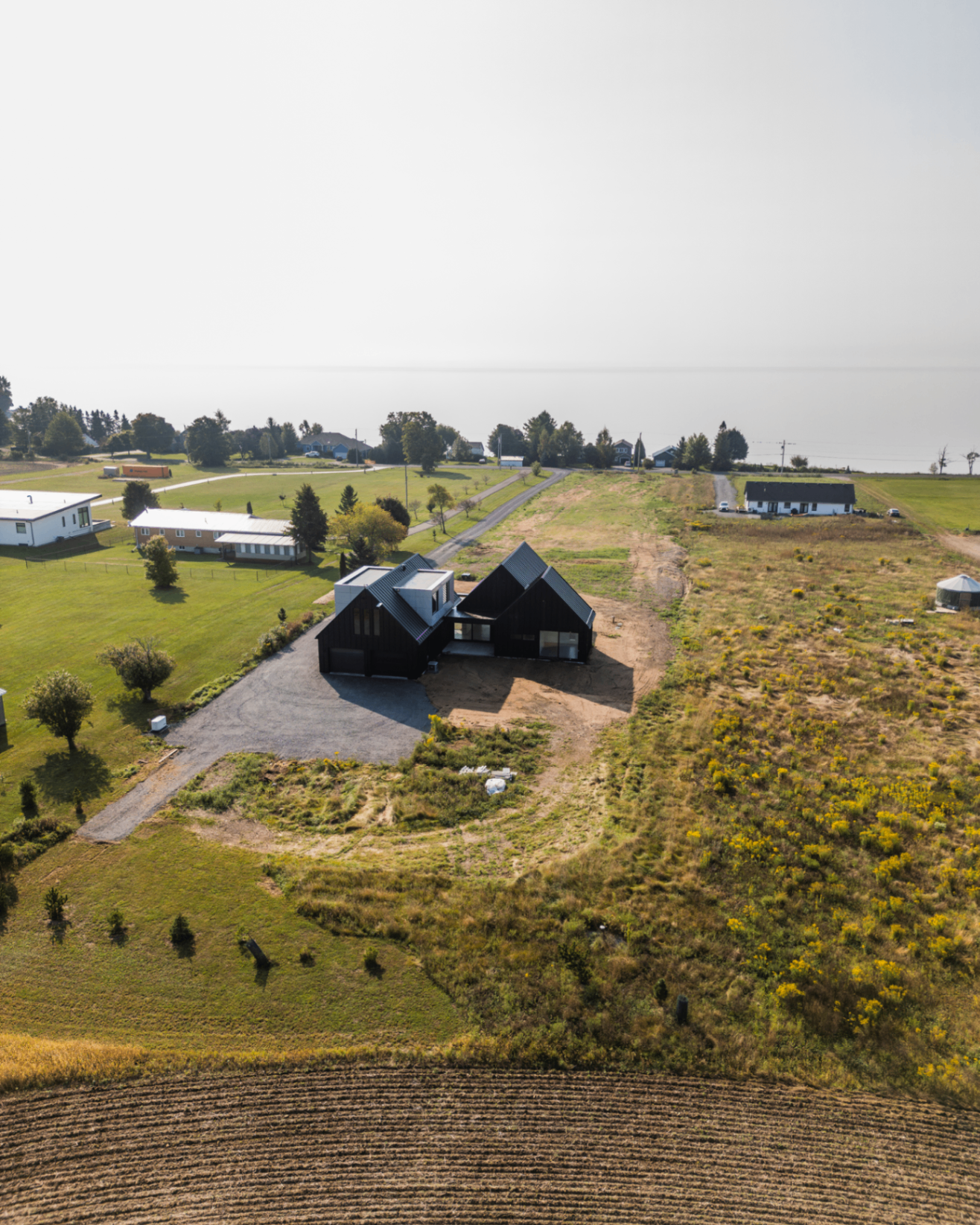

A custom home that blends modern design with natural elements, creating a striking silhouette against the landscape through mixed-material construction and expansive living spaces.

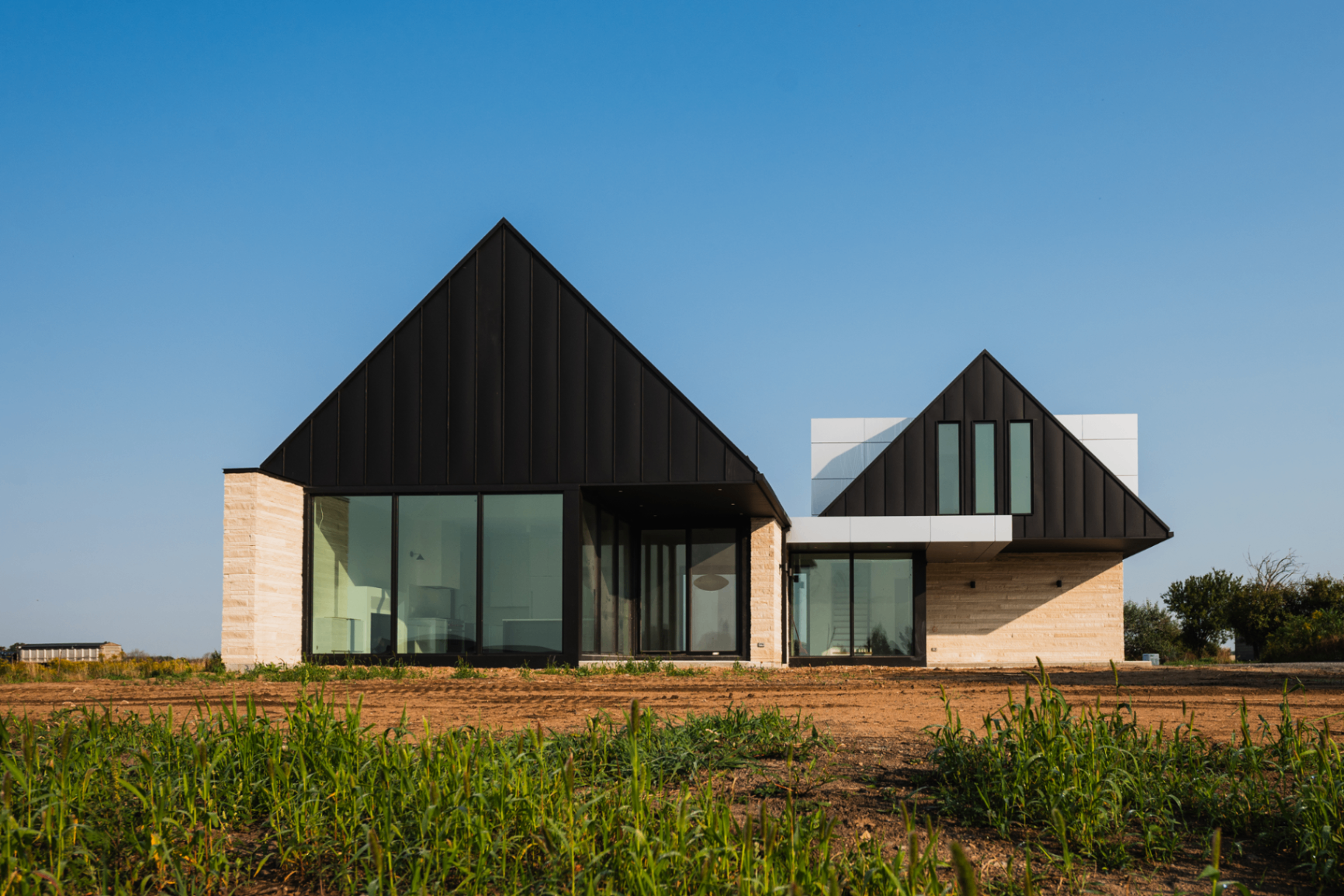

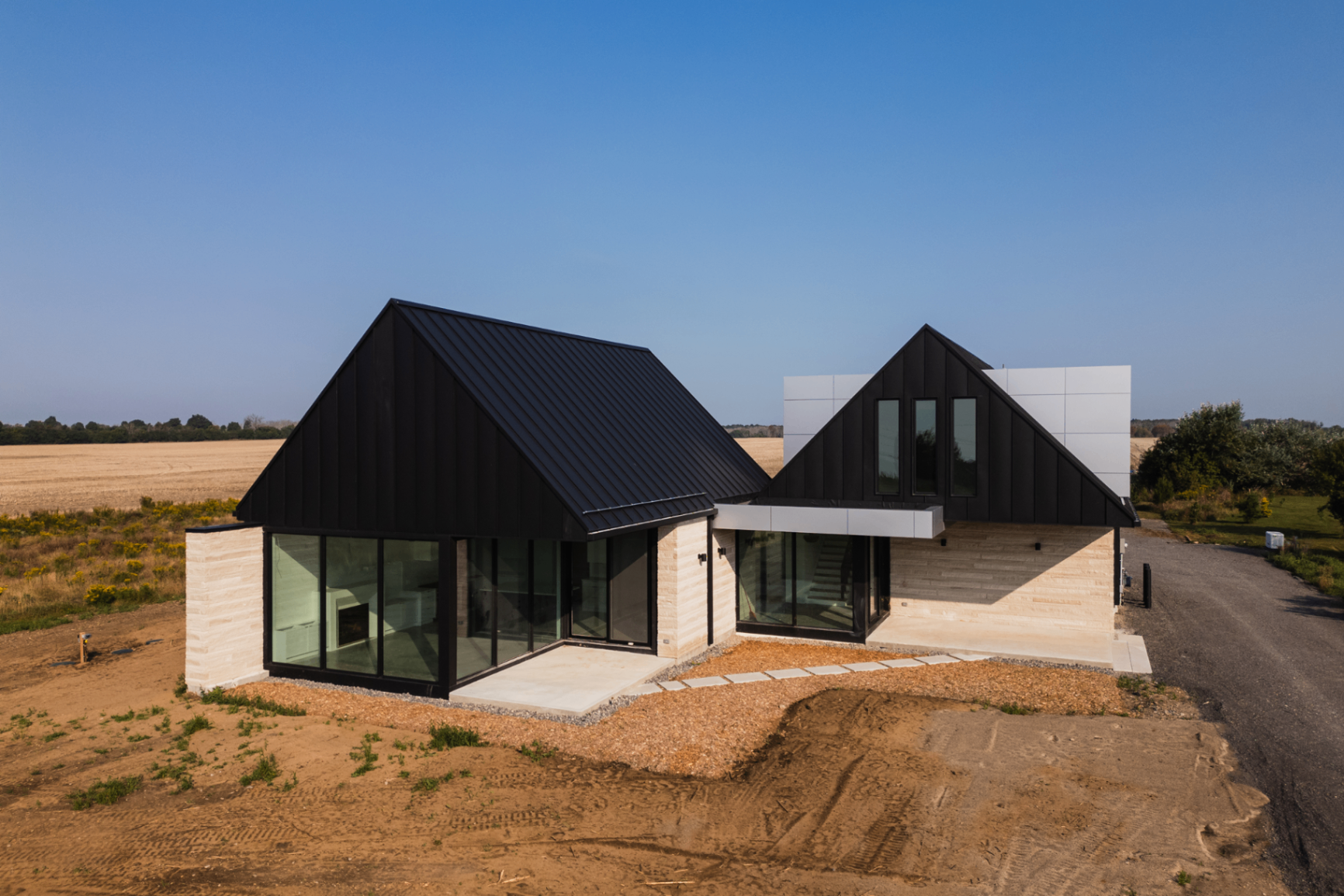

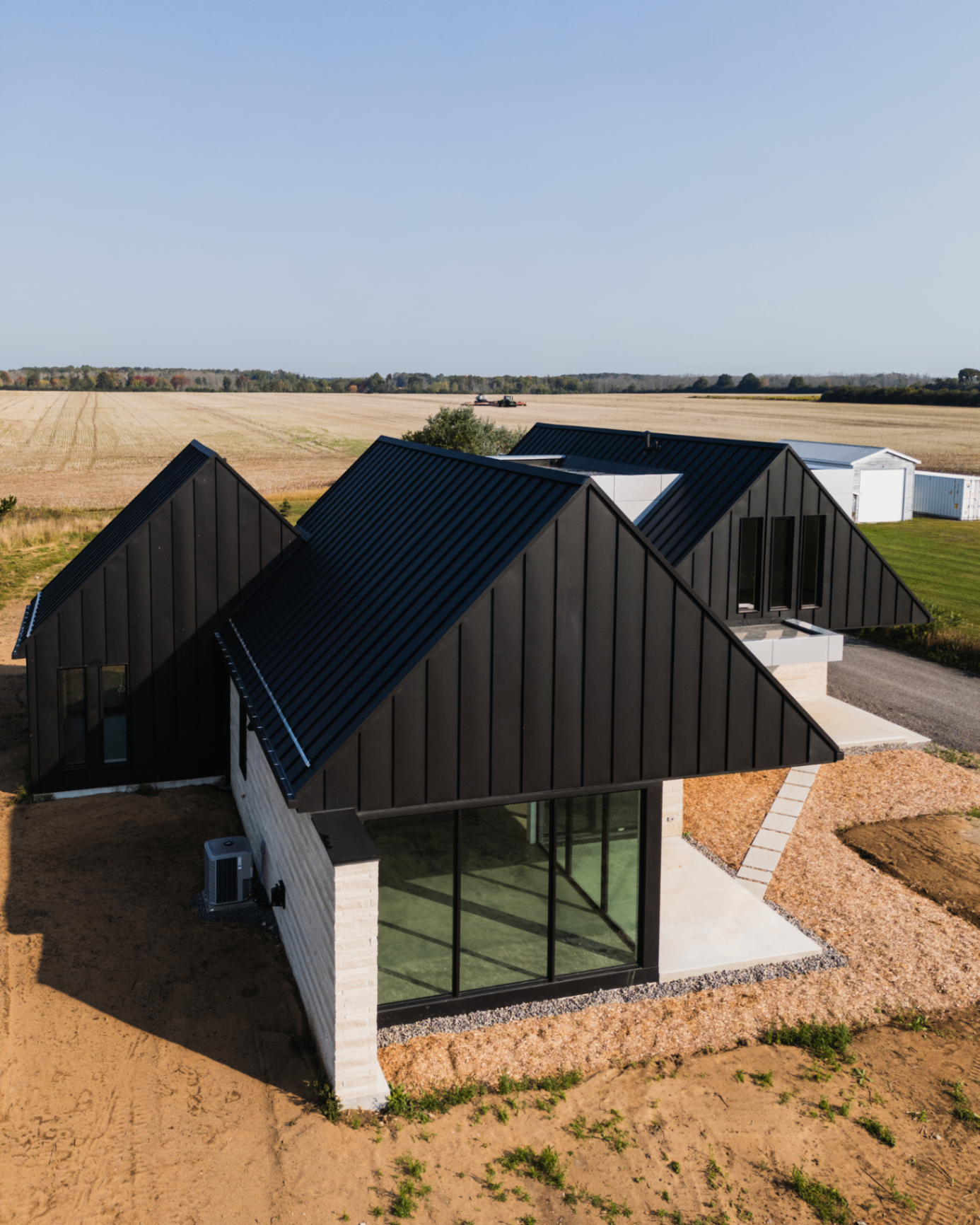

Designed by SMPL Design Studio, the home combines insulated concrete forms (ICF), wood, and steel to create a stunning architectural statement. Steeply pitched roofs, large cantilevered overhangs, and natural stone exterior wrapping provide both visual interest and structural integrity.
Inside, polished concrete floors on the main level and engineered hardwood upstairs blend durability with luxury. Floor-to-ceiling windows and massive sliding doors open onto patios for true indoor-outdoor living. Radiant in-floor heating with multiple zones and a secondary mechanical room in the attic optimize comfort and space utilization.

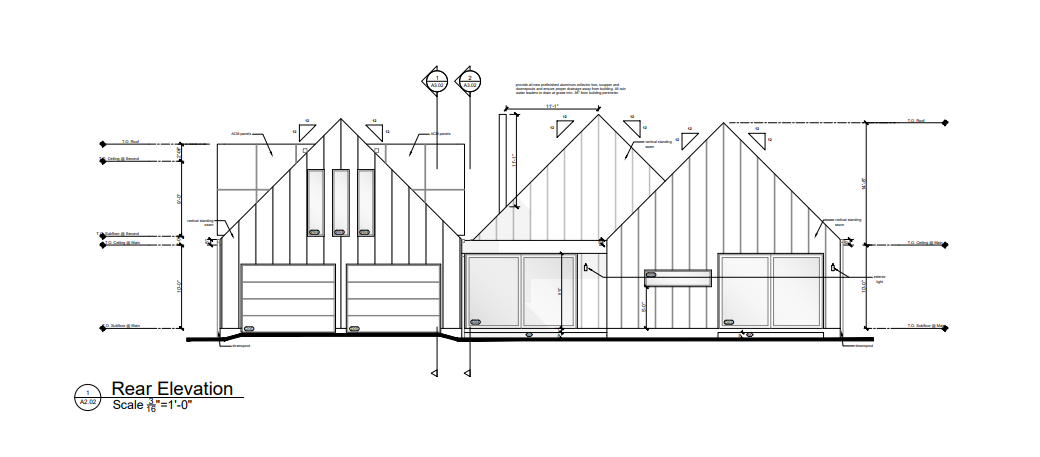

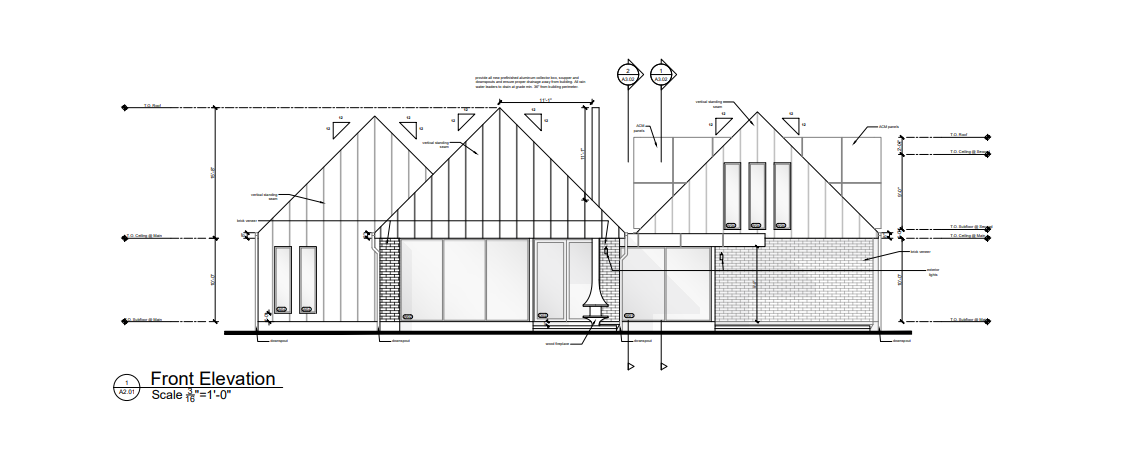

Elevation Drawings
Specification
- Envelope
- ICF foundation and main floor building envelope. Wood truss framing for second floor and roof structure. Spray foam underside of roof deck and second floor walls.
- Structure
- ICF foundation and main floor building envelope. Wood truss framing for second floor and roof structure. Slab on grade.
- Cladding

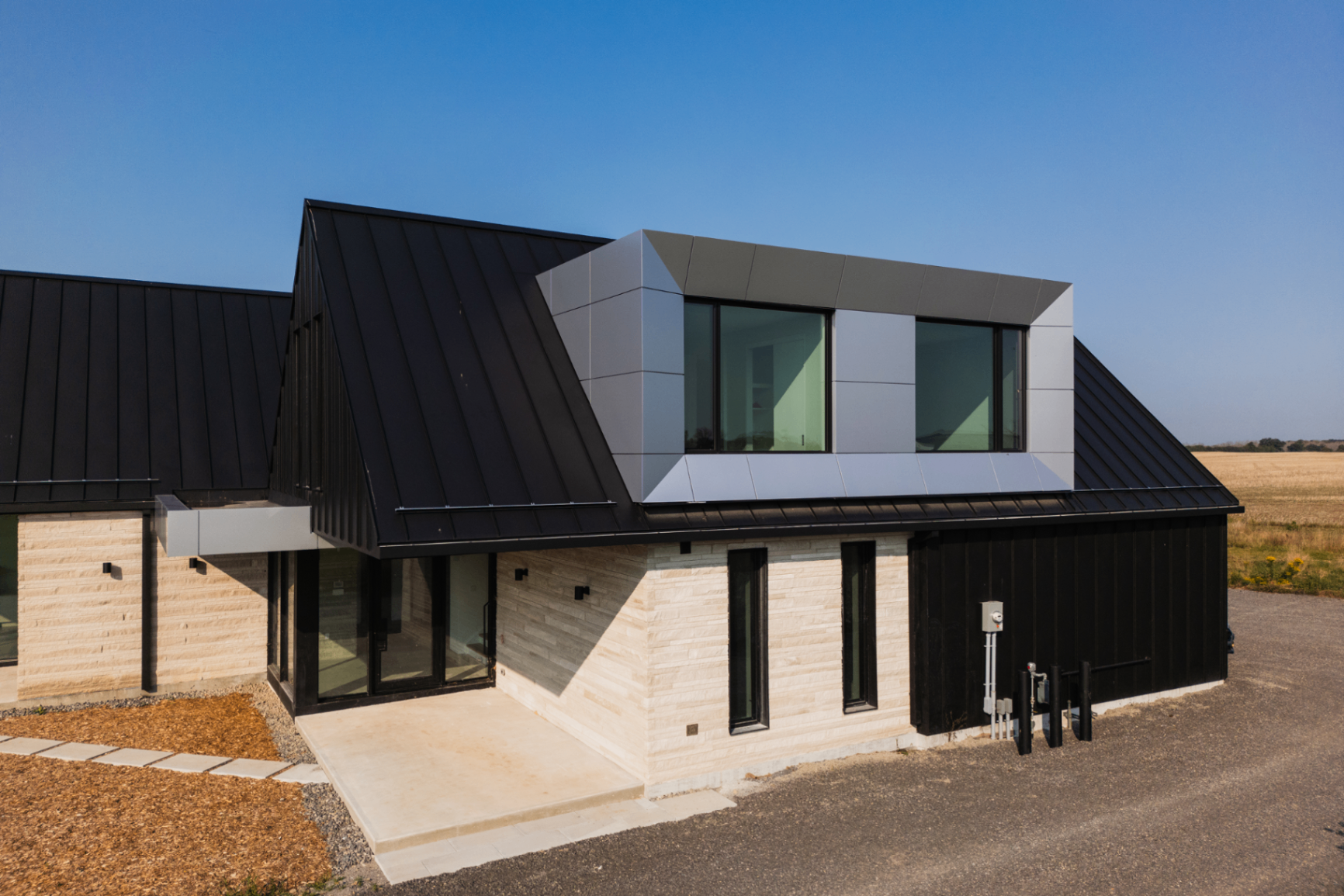

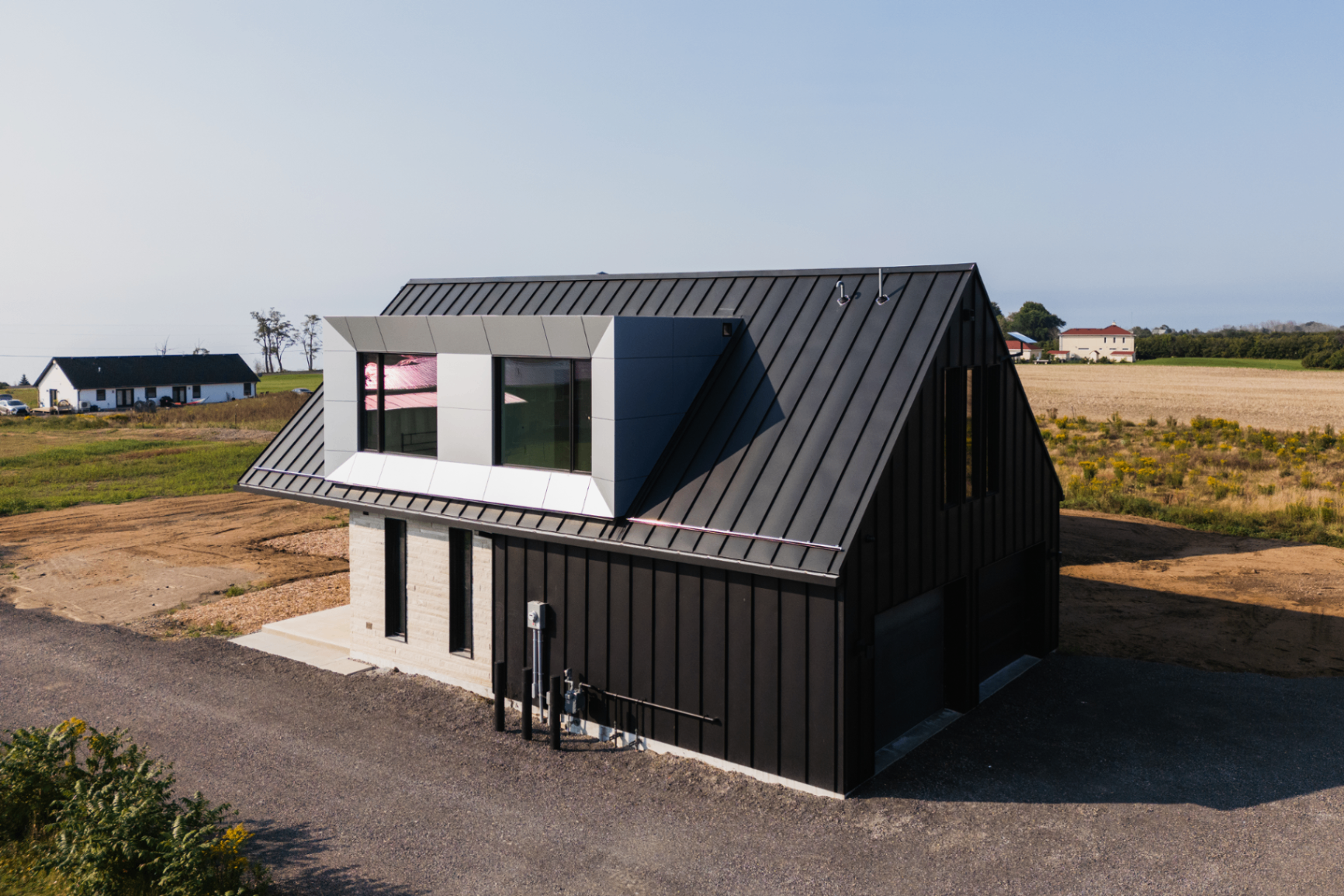

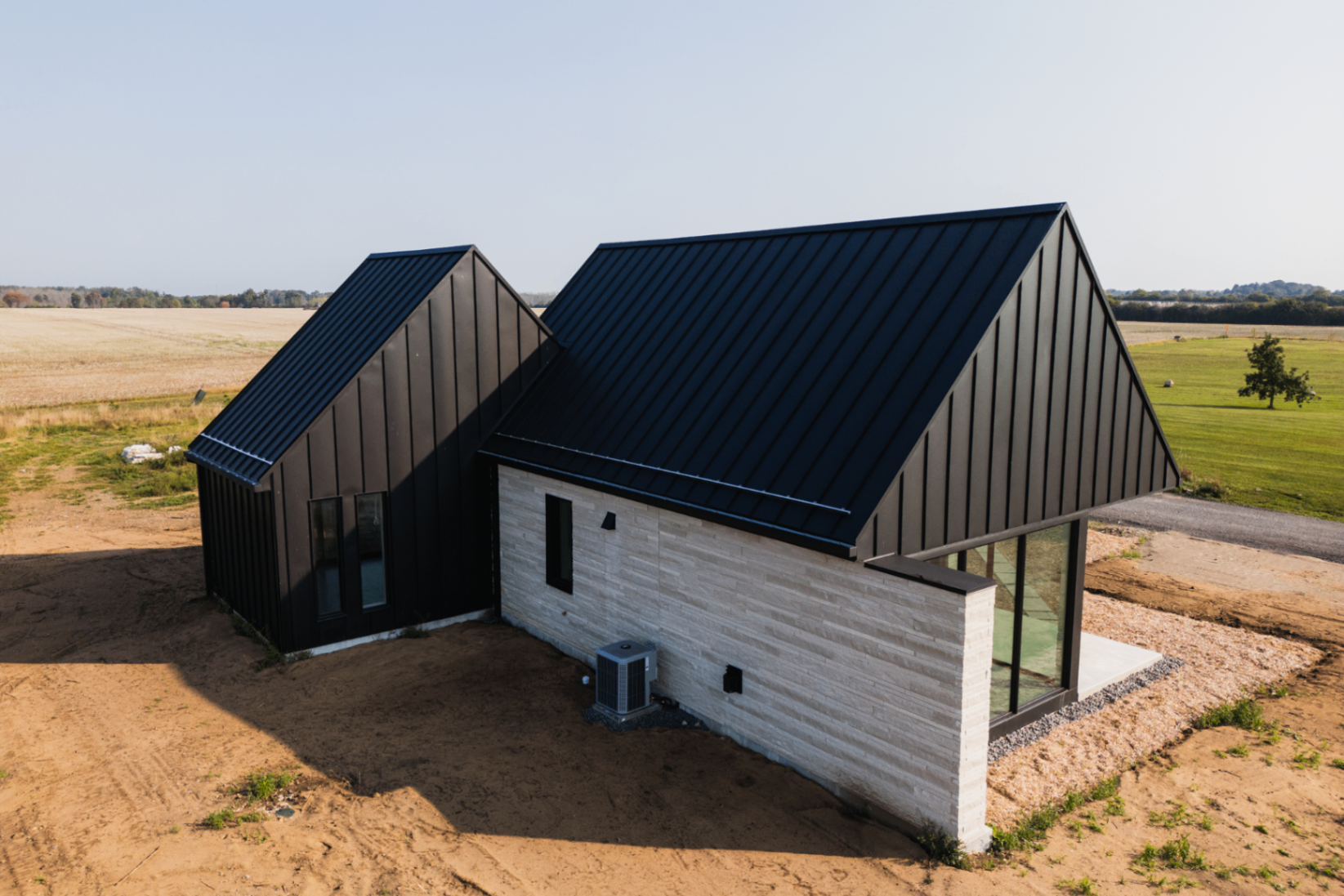

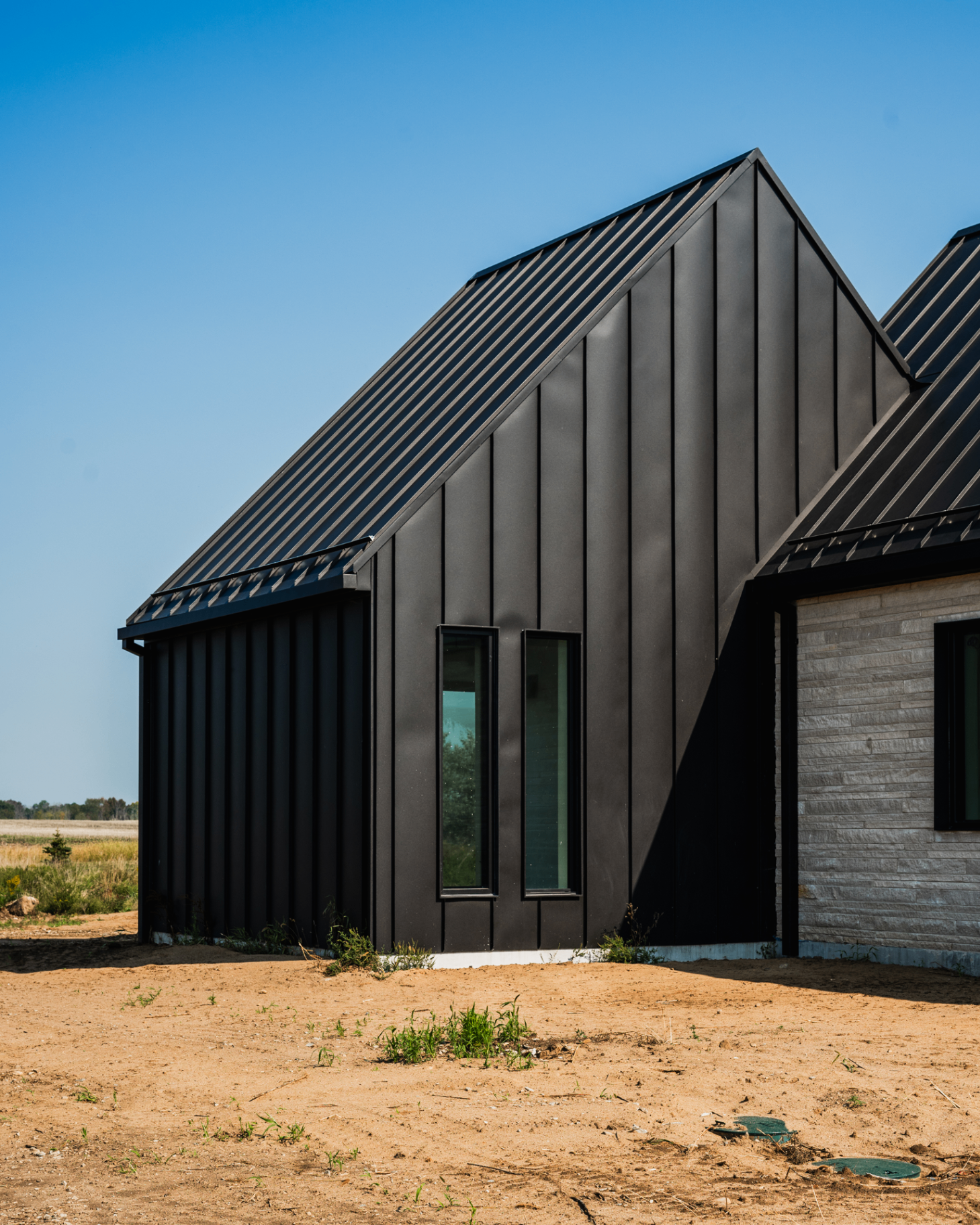

- A combination of Select Stone full bed stone, ACM panels, and standing seam steel siding.
- Glazing
- Aluminium frame triple-glazed windows supplied by Everlast.
- Mechanical
- Radiant floor heating zoned throughout the main floor. Isolated heat pumps supplying the second floor, primary wing, and main floor heating and cooling.
- Status
- Complete
